ZTE MF60 WiFi hotspot is a 3.75G mobile hotspot device, working in GSM/GPRS/ EDGE/ WCDMA/HSPA+ network.
The client device could connect to it via USB or Wi-Fi interface. With HSDPA 21.6Mbps
downlink, quad-band GSM and tri-band UMTS, it gives maximum 5
users super fast Internet experience all over the world at the same time.
ZTE MF60 runs on battery and has a mini USB port and a built-in OLED display on
the top and could supports up to 32GB Micro SDHC memory.
Working
Mode The following picture is the application example. Use the USB cable to connect
your PC orlaptop which cannot provide wireless network function, and connect
other laptops with devicevia Wi-Fi, so all of them can surf on the Internet at
the same time.
Your device supports three working modes: USB mode, Wi-Fi mode, and Mixed mode.
For the client, weonly use PC or laptop as the example in this document -
Support SMS services.ZTE MF60 supports data and SMS services. It's the fastest mobile WiFi hotspot in
the world for the moment.
Sleep Mode
When you enable the Wi-Fi function and use the battery to supply powerto the
device, once no user connects to the device within 10 minutes oryou press the
WPS button, the device will enter the sleep mode, and theLED screen will be
turned off. In the sleep mode, the Wi-Fi function will bedisabled. Press Power or WPS button to wake up the device, and the LEDscreen
will be turned on.
Notes:
With USB connection if no Wi-Fi user connects to the device within 10minutes,
only the Wi-Fi function will be disabled. Hold the WPS button about3 seconds to
enable this function.
OLED Displey
What’s HSPA ?HSPA is also called HSPA Evolution, Developed HSPA, to ensure the plus sign.
HSPA means High-speed Packet Access. it’s really an enhanced form of high-speed
3rd generation wireless systems. Because of this , why it’s also known to as
3.5G/3.75G network although it is really able to deliver 4G speeds. Technically,
HSPA can be explained as a radio broadband protocol defined within the 3GPP
discharge of the WCDMA specs. The information rate supplied by HSPA can achieve
peaks of 84 Mbit/s within the downlink and as much as 22 Mbit/s within the
uplink for each 5Hhz company. Obviously, this signifies theoretical peak sector
speeds. Actual user speeds is going to be considerably reduced. |
بالاي صفحه |
|
|
Design Process

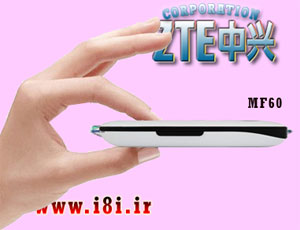

Ultimate Slim, Acme Portable
Specification |
|
HSDPA Downlink:up to 21.6Mb/s*
HSUPA Uplink: up to 5.76Mb/s* |
Data Services |
|
WCDMA: 900, 2100MHz
GSM: 850, 900, 1800, 1900MHz |
|
WCDMA CS: 64kbps UL/DL
WCDMA PS: 384kbps UL/DL |
|
Network & Frequency Band |
| approx 25m radius in free space |
WiFi working range |
|
supports up to 10 users |
Wi-Fi Connections |
| USB and Wi-Fi |
Interface |
|
802.11b/g |
Wi-Fi Standard |
| WEP/WPA/WPA2/WAPI |
Wi-Fi Security |
| USB 2.0 HIGH SPEED |
USB Version |
| Micro USB |
USB Interface Type |
|
microSD™ or microSDHC™ up to 32GB |
microSD card |
|
5V/700mA |
Power Adapter |
|
1500mAh
Li-ion |
Battery |
|
100hours |
Standby time
(low power mode) |
|
3hours, depending on usage and
network conditions. |
Working time |
|
OLED |
Display |
|
.09 Inch |
Size |
|
Windows 7, Windows Vista, Windows XP (SP2 or later),
Mac OS (10.4 or later), Linux |
Operate system |
|
IE (6.0 or later), Firefox (1.0 or later), Opera (6.0
or later), Safari (3.0 or later), Chrome
(6.0 or later) |
Web Browser |
|
*
HSDPA / HSUPA: 21.6Mbps downlink & 5.8 Mbps uplink rated device. Actual customer
peak download/upload speeds will be less due to network sharing, signal strength
and other factors. |
| |
30 Seconds To Initiate
The Connection Speed
For User!
|
|
3g.i8i.ir |
Default SSID |
|
password |
Default Security Key |
|
192.168.0.1 |
Browser home page |
| password |
Administrator |
|
From the powered up state:
Press & hold the
power key and the WPS key simultaneously. All passwords and settings will be
restored to defaults and the router will reboot.
From the browser interface:
Settings > Advanced > Restore |
Restore defaults |
|
www.zte.com.cn |
Mine Site |
| |
Extraordinary and
Excellent
3G WiFi Router
physically
|
|
77g |
Weight |
|
98mm*51mm*13mm |
Dimensions |
|
Multi Color:Snowy- blue,
puke-lead |
Color |
|
Plastic(ABS) |
Shell Material |
|
0ºC ~ +35ºC |
Operating temperature |
| -10ºC ~ +50ºC |
Storage temperature |
|
0ºC ~ +45ºC |
Charging temperature |
|
5%~ 90% |
Humidity |
|
Power-WPS |
Buttons |
|
SIM Slot-Micro SD Slot-
Micro USB Connector
External Antenna Connector |
Connectors |
|
|
Working 3 Mode
OLED Displey
System Requirements
|
| Pentium 500MHz or above |
CPU |
|
50MB available space. |
Hard Disk |
|
Windows7/VISTA/XP (SP2 and above ), Mac OS X
10.4.9 and Later, Up to X10.6.0. |
Operating System |
|
800 × 600 pixels or above (1024 × 768 is
recommended) |
Display Resolving |
| Standard USB 2.0 interface |
Interface |
|
Internet Explorer 6/7/8, Safari3/4/5 |
Web Browser |
|
|
Externally Antenna
What’s in the box?
|
| • Wireless Router |
| • USB charging cable |
| • Battery |
|
|
File sharing up
to 32G!
optional
|
| • Externally Antenna |
| • Wireless N 150 USB Adapter |
| • Power Adapter |
| • Sim Card |
| • SD Ram up to 32 G |
|
 |
| |
|
