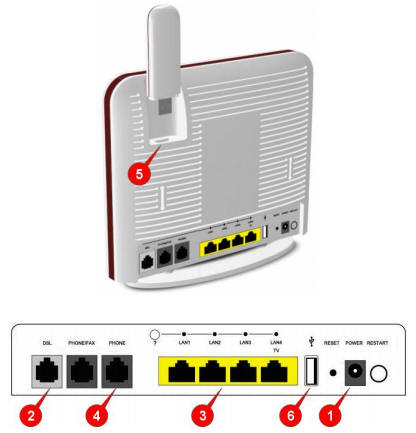

اتصالات مودم از پشت
1. Connect the modem to the sector adapter
2. Connect the telephone wall socket to the grey ADSL connector
3. Connect up to 4 computers to share the ADSL connection
4. Connect your telephone to the black socket to use the Vodafon ADSL telephone
service.
5. Connect the 3G+ USB stick to use the "Instant Activation" service
6. Connect a printer to be shared between all your computers.

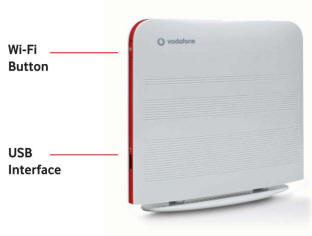

The side panel of your Vodafon Broadband Complete provides the following
interfaces and buttons:
Interface or Button Meaning
● Wi - Fi Button
Switch your Wi-Fi option on or off.
USB Interface
● Connects a USB storage device, such as a USB
disk, a printer etc.

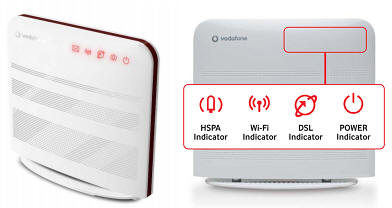

توصيف نمايشگرها
 |
Message
waiting
|
Off:
there are no messages on the answering
machine
Lit: you have a
message on the answering machine |
|
WiFi |
Off:
the WiFi network is deactivated
Lit: the WiFi
network is operational |
|
DSL / Internet
|
Blinking slowly: ADSL synchronisation
in progress
Blinking rapidly:
modem synchronised
Continuous:
Internet connection established |
|
HSPA-modem |
3G+ USB stick connected |
| Power
|
Off: the
modem is not switched on
Lit: the modem
is working correctly |
|
|
